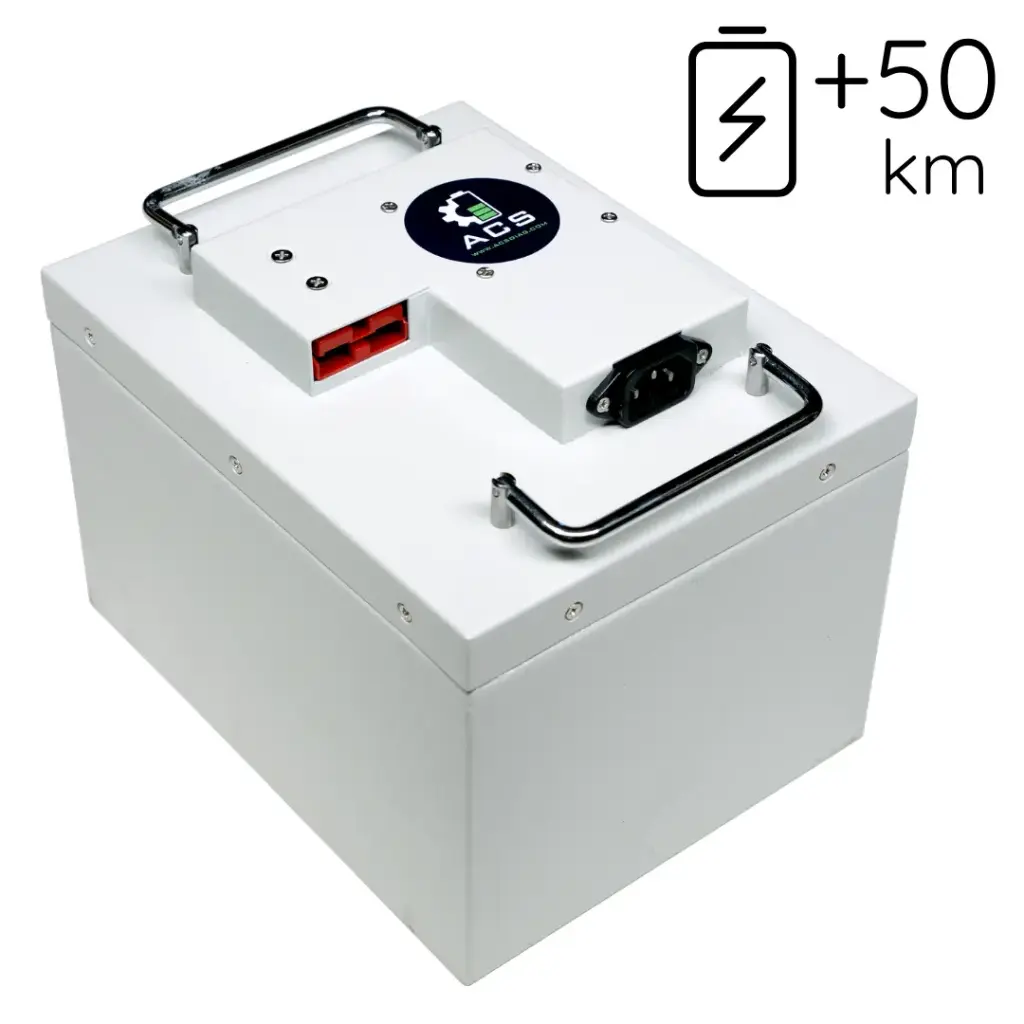

Vortex Lithium Battery 60V 20Ah


60V 20Ah or 60V 30Ah lithium battery for the Vortex electric bicycles and motorcycles.

Real range of over 50 kilometers at 25 km/h.
3-year warranty or 25,000 kilometers.
Made in Portugal.

Charger not included.

430.08 € 430.08 € (VAT included)

  • Capacity
  • Case
  • Charger
Add to cart Buy now
Terms and Conditions
Returns or exchanges within 14 days
Shipping: 2 to 3 business days
Contact Us

Characteristics

60V
Voltage
(Volts)

40Ah
Capacity(Ampere.Hour)

+100km
Range
(Kilometers)

Various connectors available: Anderson SB50, PP45, XT60, XT90, IEC C14, others by request.
For systems up to 2400W of power.
Cycle life: 1000 cycles at 80% of the original capacity
Dimensions: 225 x 192 x 149 mm

Nominal Voltage

57,6 V

Capacity

20,8 Ah

Energy

1202Wh

Manufacturing warranty

3 Anos

Charging Voltage

67,2 V

Maximum Discharge

35 A

Maximum Charge

5 A

Weight

6 Kg

Enhanced Experience

This battery comes equipped with Bluetooth

This allows the user to connect to the battery through a mobile app, available for both Android and iPhone.

Through the app, it is possible to know the battery percentage, power, temperature, current, and much more.

Learn more

Why choose our batteries?

The values and advantages that define us.

Longevity

Quality materials and smart conception. We design and manufacture our batteries to have a long lifespan and fulfill their function for as long as possible.

Performance

Higher energy density and consistency. With quality cells, tested and selected for each application. These batteries improve acceleration, hill-climbs, and even speed.

Safety

More insulation and resistance. In our design, we always take into account protection against the elements and proper insulation so that even in the event of an accident, damage is minimized.

Frequently Asked Questions

Here are some of the most common questions and answers.

For this battery to be compatible, it must meet these 3 requirements:

  1. The electric motorcycle/bicycle must operate with 60 Volt batteries; otherwise, it risks causing damage.
  2. The connection or plug must be the same in order to safely connect the battery.
  3. This battery must physically fit in the space that is available.

If the original charger is for a lead-acid battery, then the answer is no. The charger may work, but there is a risk of overcharging the battery and possibly causing a fire.

The recommended charger for this battery is 71.4 Volts and 5 Amperes.

If you have any questions about the charger, please get in touch.
